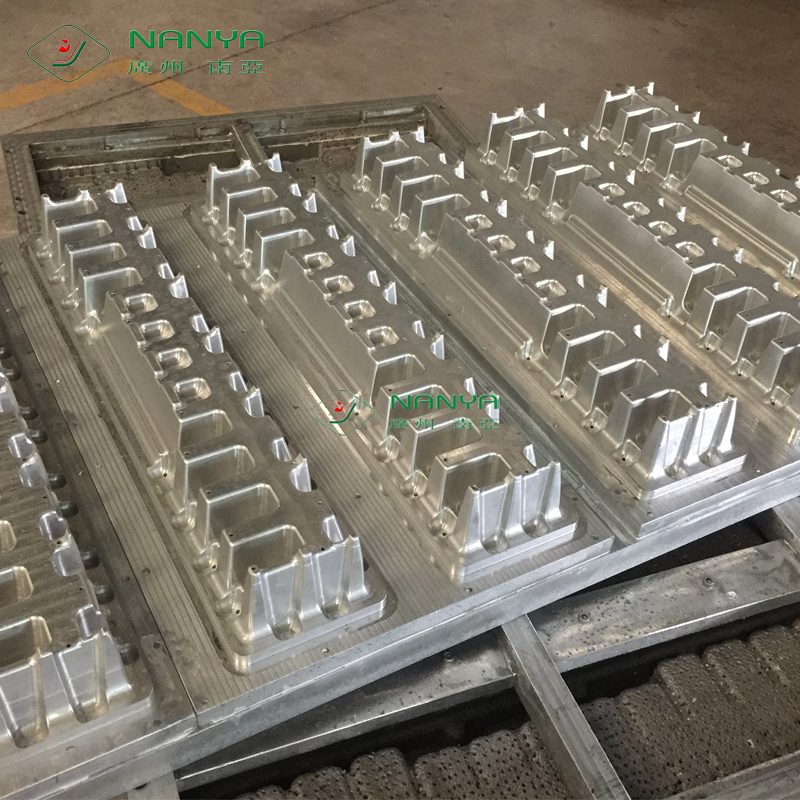

Guangzhou Nanya Aluminum Alloy Pulp Molding Industrial Packaging Mold – Full-Cavity Customization, High Precision, Compatible with Mainstream Pulp Molding Equipment
Machine Description
As a leading enterprise in China's pulp molding mold industry, Guangzhou Nanya Pulp Molding Equipment Co., Ltd. has focused on creating high-quality aluminum alloy industrial packaging molds and pulp molding industrial packaging forming molds with over 20 years of experience in mold design, manufacturing and maintenance. We have successfully customized 1-cavity, 2-cavity, 4-cavity, 6-cavity, 8-cavity, 10-cavity, 12-cavity industrial packaging molds for more than 500 customers worldwide. Covering the protective packaging needs of all types of industrial products (electronics, hardware, auto parts, precision instruments, etc.), we have become a core partner for industrial manufacturing, logistics packaging, and protective packaging production enterprises with "precision customization + excellent quality".
Key Advantages
1. High-Quality Aluminum Alloy Base Material: All pulp molding industrial packaging molds are made of imported 6061 aluminum alloy, which combines lightweight (easy for installation and debugging) and high strength (impact-resistant and non-deformable). With a thermal conductivity of 160W/(m·K), it can accelerate pulp dehydration and drying, shortening the industrial packaging forming cycle by 25%. Meanwhile, it has excellent corrosion resistance and wear resistance. Tested by a third party, the mold service life can reach 1,000,000 forming cycles, far higher than the industry average.

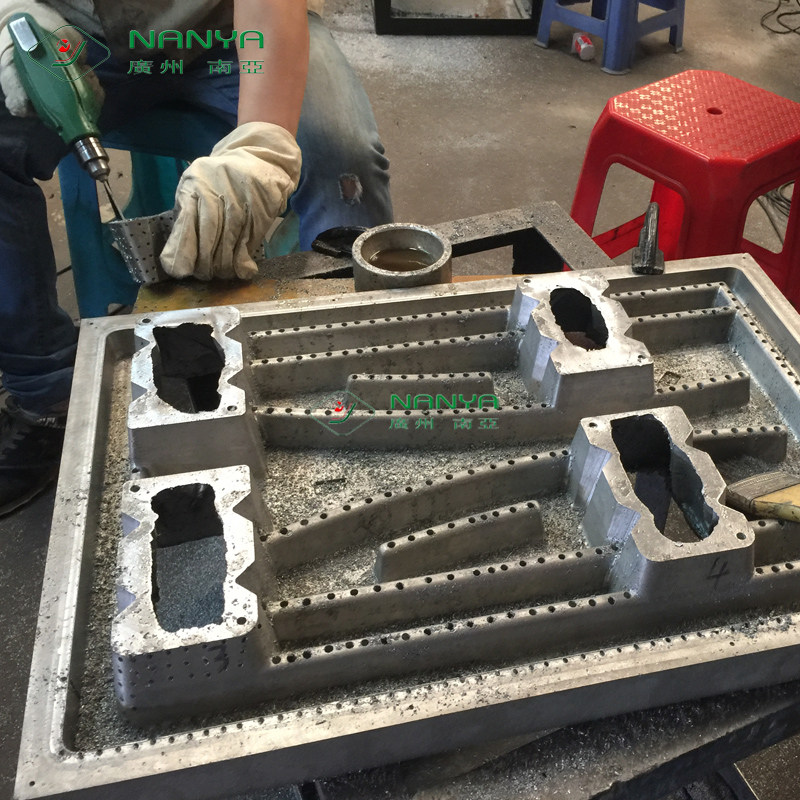

2. Multi-Technology Collaborative Processing: Integrating four core technologies - CNC precision milling, EDM (Electrical Discharge Machining), wire EDM, and mirror polishing - we perform micron-level precision processing on mold cavities, runners, and vent holes. Whether it is a 2-cavity industrial packaging mold for small electronic components or a 12-cavity large-capacity industrial packaging mold for auto parts, the cavity size error is ≤0.03mm, perfectly fitting the contour of industrial products. The runner adopts a flow-optimized design to ensure uniform pulp adsorption, with the industrial packaging wall thickness deviation ≤0.08mm and compression resistance increased by 35%, effectively preventing product collision and damage during transportation.
3. Detailed Optimization Design: The inner wall of the mold cavity undergoes 12 rounds of polishing, with a surface roughness of Ra ≤0.15μm, realizing "second demolding" of industrial packaging without burrs or deformation. The mold frame adopts a reinforced beam structure to prevent deformation during long-term high-load use. Equipped with quick-lock positioning components, the installation efficiency is increased by 60%, reducing labor costs.
Application
Full-Scenario Customization + High Compatibility, Adapting to Diverse Production Needs
As one of the few industrial packaging mold customization manufacturers in the industry that realizes "full-spec coverage of 1-12 cavities", Guangzhou Nanya can provide personalized solutions according to customers' production scale, product type, and packaging standards:

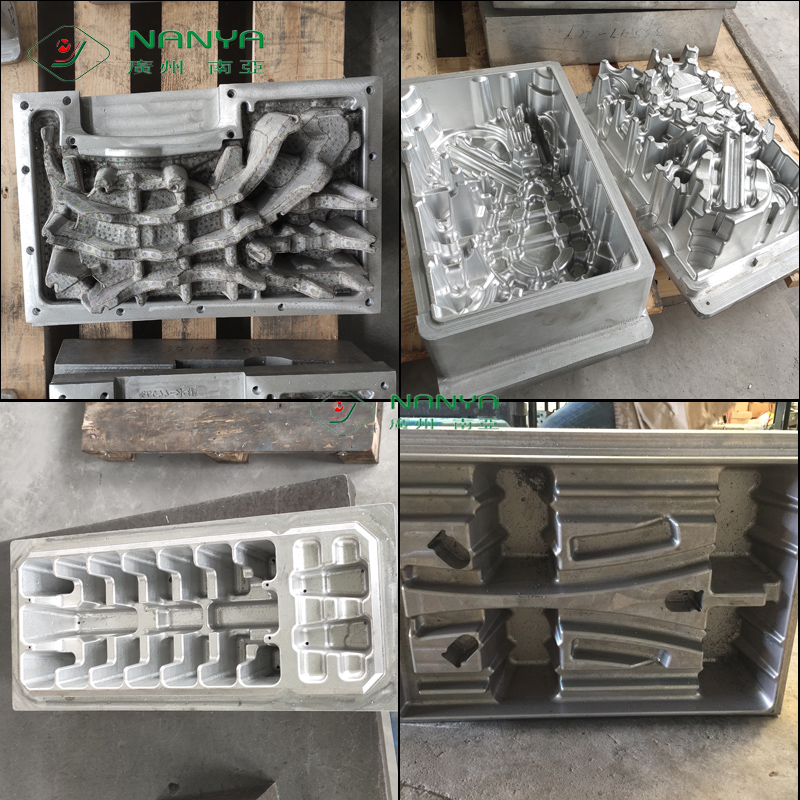

• Cavity Count Customization: Supports 1-cavity (large precision instrument packaging), 2-cavity/4-cavity (small electronic component packaging), 6-cavity/8-cavity (hardware tool packaging), 10-cavity/12-cavity (auto parts batch packaging), which can be adapted to industrial products of different sizes (small chips: 1-5cm, hardware tools: 10-30cm, auto parts: 20-50cm, etc.).
• Structure Customization: Provides shock-absorbing industrial packaging molds, anti-static industrial packaging molds, insert-type industrial packaging molds, and foldable industrial packaging molds to meet the packaging needs of different transportation modes (air, sea, land) and storage environments (high temperature, humidity).

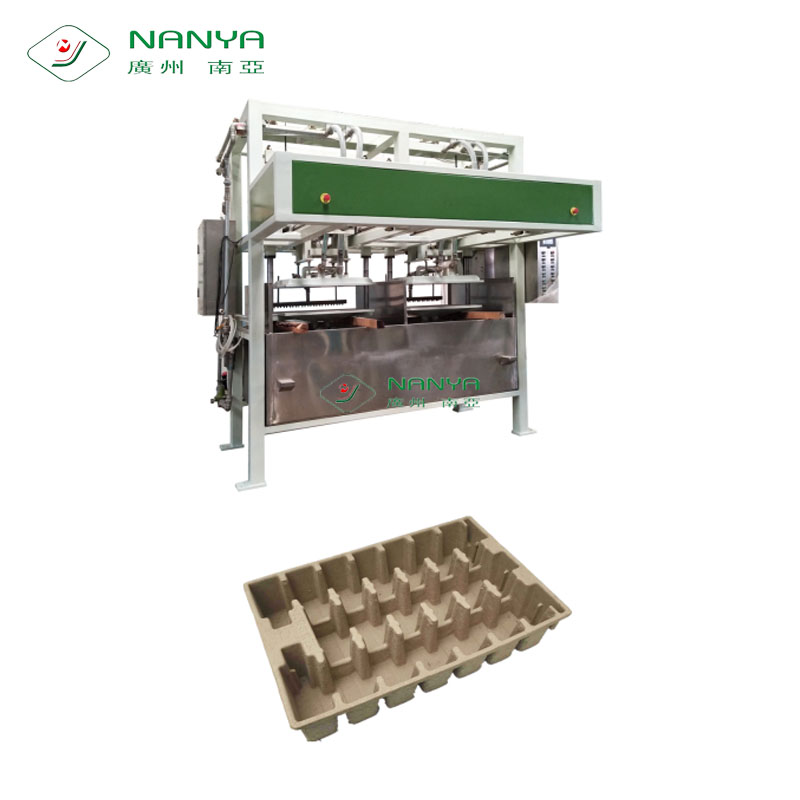

• Equipment Compatibility: All aluminum alloy industrial packaging molds are compatible with mainstream pulp molding forming machines (such as reciprocating forming machines, rotary forming machines) and industrial packaging production lines (output: 800-4500 pieces/hour) on the market. No modification to existing equipment is required, enabling immediate installation and quick production.
Support and Services
1. Professional Design Team: A team of more than 20 mold engineers, proficient in design software such as AutoCAD, SolidWorks, and UG. Based on the industrial product size and packaging drawings provided by customers, they can optimize the mold structure and conduct runner flow simulation analysis, ensuring the one-time test success rate of molds is over 99%.
2. Rich Customization Cases: We have delivered more than 1,500 sets of pulp molding industrial packaging molds, with all specifications of 1-12 cavity molds verified by mass production. Our customers include well-known manufacturing enterprises such as Gree, Midea, and many cross-border logistics packaging suppliers.
3. Technical Support Service: Provides bilingual (Chinese/English) installation manuals, operation videos, and maintenance guides. Engineers can be arranged to conduct on-site mold installation, debugging, and employee training. A 24-hour online after-sales team is available to quickly solve mold problems such as mold blocking and wear through phone and video calls.
4. Accessories and Refurbishment: We supply original mold wearing parts such as ejector pins, guide sleeves, and sealing gaskets for a long time, and provide mold refurbishment services (precision polishing, welding repair, dimension restoration) to extend the mold service life by 35% and reduce the comprehensive cost of customers.
Packing and Shipping
As a core equipment for pulp industrial packaging production, Guangzhou Nanya aluminum alloy industrial packaging molds are widely used in:
• Industrial Manufacturing Industry: On-site production of protective packaging in electronics factories, hardware factories, and auto parts factories to realize "product finished + immediate packaging" and reduce product damage rate during storage and transportation.
• Logistics Packaging Enterprises: Mass production of standardized industrial packaging to adapt to the whole process of product warehousing, sorting, transportation, and distribution.
• Protective Packaging Manufacturers: Production of eco-friendly pulp industrial packaging for supply to manufacturing parks, logistics companies, and e-commerce platforms for industrial products.
• Industrial Parks & Cooperatives: Providing unified-specification industrial packaging for small and medium-sized manufacturing enterprises to
Cooperation Invitation
If you need to customize 1-cavity, 2-cavity, 4-cavity, 6-cavity, 8-cavity, 10-cavity, 12-cavity pulp molding industrial packaging molds, or seek an overall industrial packaging production solution, please feel free to contact Guangzhou Nanya Pulp Molding Equipment Co., Ltd.! With professional technology, stable quality, and considerate service, we will work with you to create new value in the industrial protective packaging industry!
